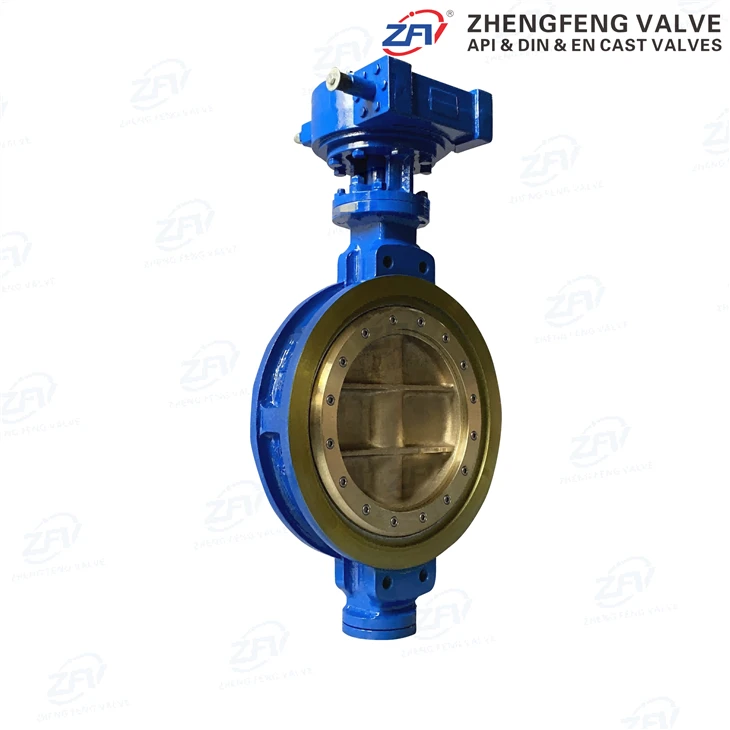

Triple Offset Butterfly Valve

Triple Offset Butterfly Valve Manufacturer

Engineered for bi-directional, bubble-tight shut-off, these valves eliminate the friction between the seat and the seal ring throughout their entire stroke.

Technical Specifications

Parameter	Specification / Compliance
Design Standards	API 609, ASME B16.34, ISO 5752
Size Range	3" – 120" (DN80 – DN3000)
Pressure Ratings	ASME Class 150, 300, 600, 900
Temperature Range	-196°C to +815°C (Cryogenic to High Temp)
Face-to-Face	API 609, ASME B16.10, EN 558
Testing Standards	API 598 (Zero Leakage), ISO 5208, Fire-Safe (API 607)

Triple Offset Structure Design

1st Offset

The shaft is located behind the plane of the sealing surface, allowing for a continuous 360° sealing path.

2nd Offset

The shaft is displaced from the centerline of the pipe/valve, creating a cam-like action during opening and closing.

3rd Offset

The seat cone axis is inclined relative to the pipe centerline, eliminating friction during the entire stroke and enabling a torque-seated metal-to-metal seal.

Testing & Quality Control

Hydrostatic & Pneumatic Tests

Performed on every valve according to API 598, ensuring zero visible leakage.

Fire-Safe Testing

Certified to API 607 / ISO 10497, ensuring sealing integrity during and after a fire event.

Fugitive Emission Testing

Certified to ISO 15848-1, meeting strict environmental regulations for stem sealing.

Positive Material Identification (PMI)

Verifying all high-alloy castings to ensure 100% material compliance.

Low Torque Verification

Ensuring smooth operation for optimal actuator sizing.

Engineering Support

Actuation Integration

Specialized in mounting and calibrating pneumatic, electric, and electro-hydraulic actuators.

Material Selection Consulting

Helping engineers choose between Stellite-faced seats, Duplex SS, or Inconel for high-cycle or corrosive services.

CAD & BIM Documentation

Providing 2D/3D models and technical data sheets for seamless project planning.

On-site Technical Assistance

Global support for commissioning and maintenance training.

Factory Capability

01.

Precision Machining

Equipped with large-scale CNC vertical lathes and multi-axis boring machines for ultra-tight seat tolerances.

02.

In-house Foundries

Strategic partnerships with certified foundries ensuring high-quality, defect-free castings (WCB, LCC, CF8M, etc.).

03.

Clean Room Assembly

Dedicated facilities for Oxygen-service and Cryogenic valve cleaning and assembly.

04.

Scalable Production

Capacity to deliver large-diameter valves (up to 120") for major infrastructure projects with reliable lead times.

FAQ

Q: Why choose Triple Offset over High-Performance Double Offset?

A: Double offset valves still rely on interference/friction for sealing, which can wear out. Triple offset valves are torque-seated and friction-free, making them superior for high-pressure, high-temperature, and fire-safe applications where zero leakage is critical.

Q: Are your TOVs bi-directional?

A: Yes, our design ensures bi-directional bubble-tight shut-off. However, we always recommend identifying the "Preferred Flow Direction" to maximize the service life of the torque-seated mechanism.

Q: Can you handle cryogenic temperatures?

A: Absolutely. We offer extended-bonnet designs for cryogenic service (down to -196°C), keeping the stem packing away from the freezing fluids to ensure smooth actuation.

Q: What certifications accompany the shipment?

A: Each shipment includes MTC 3.1, Pressure Test Reports, Certificate of Compliance, and Fire-Safe/Fugitive Emission certifications as required by the contract.
